Configure API Rate Limiting

• From the Console homepage, select Multi-Cloud App Connect service.

• Select your namespace.

• Navigate to Manage > Load Balancers > HTTP Load Balancers.

• Select ... for your load balancer and select Manage Configuration to open load balancer configuration form.

• Select Edit Configuration option located in the top right corner of the form.

• Scroll down to the Common Security Controls section.

• Select the API Rate Limit option from the Rate Limiting drop-down menu.

• Select View Configuration to see the rate limiting configuration options.

• Optionally in the IP(s) Allowed without Rate Limiting field, select one of the following to exclude IP addresses from rate limiting:

  • No IP Allowed - There are not exceptions to API rate limiting: all clients can be rate limited.

  • IP Allowed List - Enter IP addresses in the IPv4 Prefix List field. You can add more than one using the Add item option. At least one IP address must be entered for this option.

  • IP Allowed List using IP Prefix Set(s) - Select IP prefix sets using the List of IP Prefix Sets drop-down menu. You can add more than one using the Add item option. At least one pre-configured IP prefix set is required for this option.

  • Bypass Rate Limiting - With this option, you can define rules by URL or API group to decide if rate limiting should be bypassed.

Note: No IP Allowed is the default for the IP(s) Allowed without Rate Limiting field.

The server URL rules apply rate limiting for an entire domain or base path that contains multiple API endpoints.

• Select Configure followed by Add Item in the Server URLs section and do the following in the form:

• Select the Domain field and select either Any Domain or Specific Domain. In case of specific domain, enter the domain in the Specific Domain field. Default option is Any Domain.

• Select on the Base Path field and enter a base path.

Note: Select the Base Path field and click See Suggestions to display suggested list of paths. This shows suggestions only if you have configured an API definition. To know how to create and configure API definition, see Import Swagger and Define APIs.

• Select one of the following client specifiers from the Clients drop-down menu:

  • Any Client: This URL rule will apply to all clients.

  • List of IP Threat Categories: Select them by the type of attacks they are known for, such as Scanners, Phishing, and Mobile Threats.

  • Group of Clients by Label Selector: This option allows you to specify clients using a powerful set of expressions based on the TLS certificate or the Distributed Cloud internal control plane.

• Select one of the following options in the Rate Limiter Values:

Specific Values

• Enter a number for both of the Threshold and Duration fields. The threshold represents the number of allowed requests for the time period set in the duration field.

• The Count By field sets the HTTP load balancer user identifier for the client identification. You can change this to use a custom user identification. Select User Identification Policy for the Count By field and then select an existing user identification policy or use the Add Item option to create and apply a new user identification policy.

Figure: Server URL Rule

External Rate Limiter

• In the External Rate Limiter field, select an existing rate limiter. If you don't have one or want to create a new one, select Add Item to see the Rate Limiter form.

  • Enter a Name and optionally Labels and Description.

  • Select Edit Configuration to configure the new rate limiter.

    • Enter the maximum number of requests per period in the Number of Requests field.
    • Select a unit of time in the Per Period field. Supported units are Seconds, Minutes, and Hours.
    • Enter the number of periods to apply the rate. As an example, If you enter [1, Seconds, 60] or [1, Minutes, 1] for [Number of Requests, Per Period, Periods] both would be the same as 1 request per minute. Another example, enter [15, Seconds, 1] to set 15 requests per second as the rate limit. A user who exceeds that would be blocked until the rate drops below the limit.
    • Optionally enter a value for the Burst Multiplier field, which indicates how many times a user can hit the requests/unit limit. *Optionally select Block for the Mitigation Action if you want a user to be blocked for all requests for some duration of time after exceeding the rate limit.

  • Select the User Identification Policy.

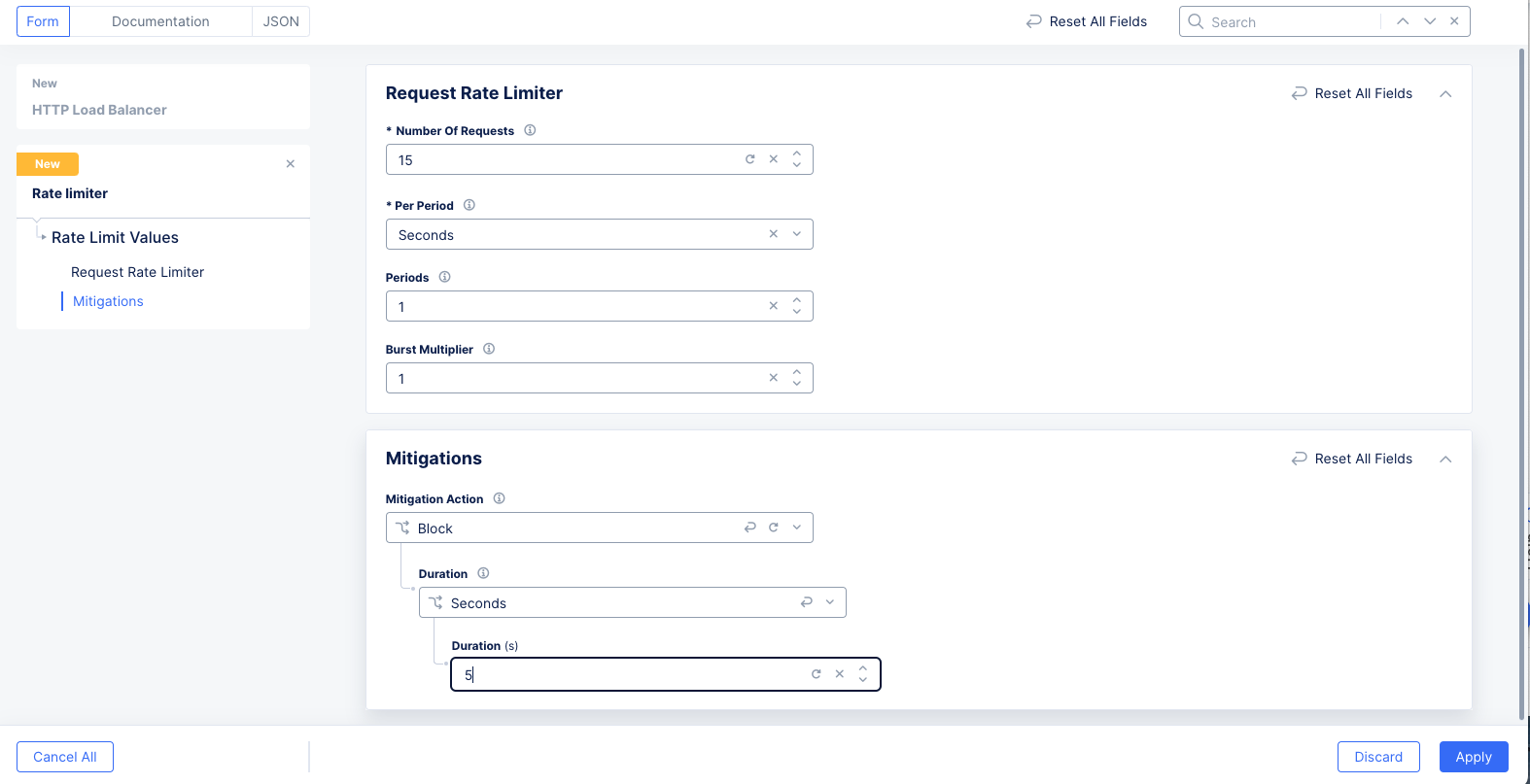

The following example sets 15 requests per second as the rate limit. A user who exceeds that would be blocked until the rate drops below the limit, and the mitigation action would force that blocking to happen for a minimum of 5 seconds.

Figure: Server URL External Rule

• Optionally make a selection from the API Group drop-down menu. API groups are derived from the API swaggers.

Note: See Configure Rate Limiting guide for instructions on how to create rate limiter and user identifiers.

• Select Apply to add the server URL rule.
• Use the Add Item in the Server URLs section to add more rules.

Note: The rules are processed in the order in which you configure the server rules. The first rule matching the request triggers rate limiting and rest of the rules after that are not executed. Therefore, ensure you set the order of rules as per your requirements.

• Select Apply to save your server rules list.

The API endpoint rules apply rate limiting for specific endpoints.

• Select Configure followed by Add Item in the API Endpoints section and do the following in the New Item form:

• In the Domain field, select either Any Domain or Specific Domain. In the case of specific domain, enter the domain in the Specific Domain field. The default option is Any Domain.

• In the API Endpoint field and enter a specific API endpoint path.

Note: You can use the API Endpoint field's drop-down capability and select See Suggestions to display suggested list of endpoints. The suggestions are shown only if you have configured an API definition. To know how to create and configure API definition, see Import Swagger and Define APIs.

• In the Method List field under HTTP Methods, select the methods for which the rate limiting is to be applied. You can select more than one method. Alternatively, you can select the methods you for which you don't want to apply rate limiting and then check the Invert Method Matcher, which effectively select all the other methods for rate limiting.

• Select one of the following client specifiers from the Clients drop-down menu:

  • Any Client: This URL rule will apply to all clients.

  • List of IP Threat Categories: Select them by the type of attacks they are known for, such as Scanners, Phishing, and Mobile Threats.

  • Group of Clients by Label Selector: This option allows you to specify clients using a powerful set of expressions based on the TLS certificate or the Distributed Cloud internal control plane.

• Select one of the following options for the Rate Limiter Values field:

Note: See Configure Rate Limiting guide for instructions on how to create rate limiter and user identifiers.

• Select Apply to add the API endpoint rule.
• Use the Add Item in the API Endpoints section to add more rules.

Note: The rules are processed in the order in which you configure the API endpoint rules. The first rule matching the request triggers rate limiting and rest of the rules after that are not executed. Therefore, ensure you set the order of rules per your requirements.

• Select Apply to save your to save your API endpoints list.

After you finish, select Save and Exit.
